Product Overview
Specifically manufactured for consumer appliance applications where surface quality and formability are critical. The smooth, uniform surface is ideal for painting, powder coating, or direct use in visible applications.
The company has ecellent equipment configuration and strong technical force.It can produce galvanized steel sheets of various speciications ranging from 0.10 to 1.20×700~1250 ×C.The ultra-thin Large zine gavanized shets produced by 0.10~0.15×1000C are at the international ad- vanced level.Thedomestic gap has an incomparable advantage.
Product Description
They have superior performance, taking into account practicality and economy, and are high-quality choices for metal materials in the civilian field.
Performance Features: They have strong corrosion resistance and can resist the erosion of the atmosphere, water, acids, alkalis, etc.; the surface is smooth and beautiful, meeting decorative needs; they have good strength and rigidity, good processability, and can be cut, bent and welded; the price is affordable and economical.
Application Fields: They are used in construction (roofs, doors and windows), home appliances (refrigerators, washing machines), automobiles (car bodies, car floor panels), containers (water tanks, oil tanks) and other fields.
Production Process: It includes base substrate production (cold rolling or hot rolling) and coating production (electroplating or hot-dip plating). During production, cleaning, drying and other treatments are also required. At the same time, attention is paid to environmental protection, and environmentally friendly processes and auxiliary materials are adopted.
Specifiction
Key Features & Highlights
Exceptionally smooth surface quality
Optimized for deep drawing
Tight quality controls
Consistent mechanical properties
Ideal for visible applications
Application field
Cvilangalanized shect is used in felds such as construstion,home appliances and automotive containers.In the fiesd of architecture,galanized sheet can be used to make rofs,walls,dors and windows,etc;In thefield of home apliances it can he used to make refriorators,washing machines,air con ditioners,t;In the field of autombiles,it can be used to make car bodies undercariage,etc;In th feld of containers,it can be used to make water tanks,oil tanks,etc.
Washing machine shells and drums
Refrigerator panels and components
Water tank manufacturing
Automotive floor panels
Building window frames
Why Choose Us
Advanced Production Lines: High-speed continuous hot-dip galvanizing equipment.
Strict Quality Control: 100% surface inspection and mechanical property testing.
Global Certification: ISO, ASTM, EN compliance for international markets.
Customization: Zinc coating, thickness, width, and surface treatments tailored to customer needs.
Export Expertise: Long-term supply to over 80 countries with professional logistics support.
FAQ
Q1: What makes civilian grade different from industrial grade?
A: Civilian grade has smoother surface (Ra <0.8μm), tighter thickness tolerance (±0.02mm), and optimized steel chemistry for deep drawing. Additional quality inspections ensure consistency for visible appliance components.
Q2: What is the maximum draw depth achievable?
A: Draw ratios up to 2.2 for simple shapes and 1.8 for complex forms. Actual capability depends on part geometry, die design, and forming speed. Technical support available for challenging applications.
Q3: Is civilian galvanized suitable for painting?
A: Yes, the smooth, clean surface is ideal for painting and powder coating. Oiled or unoiled finishes available. Light cleaning recommended before painting. Chromated finish available for enhanced corrosion resistance.
Q4: What certifications are provided?
A: Mill test certificates with chemical composition and mechanical properties. ISO 9001:2015 certification. RoHS compliance available. Third-party inspection (SGS, BV) can be arranged upon request.
Q5: What is typical delivery time?
A: Standard products: 15-20 days. Custom specifications: 25-35 days. Large volume contracts can be scheduled for just-in-time delivery. Safety stock maintained for common specifications.
DX51D Galvanized steel is a type of steel that has been treated with zinc to enhance its corrosion resistance.
1.Surface structure code / Not just polished

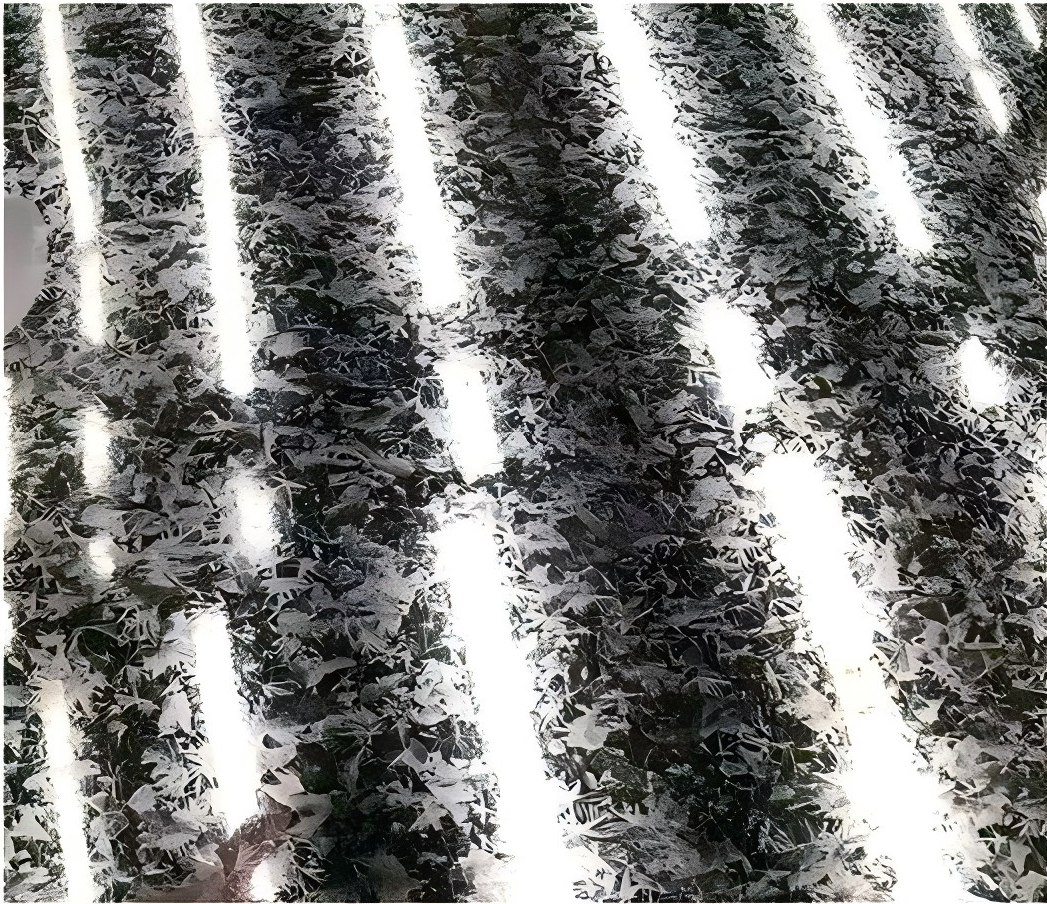

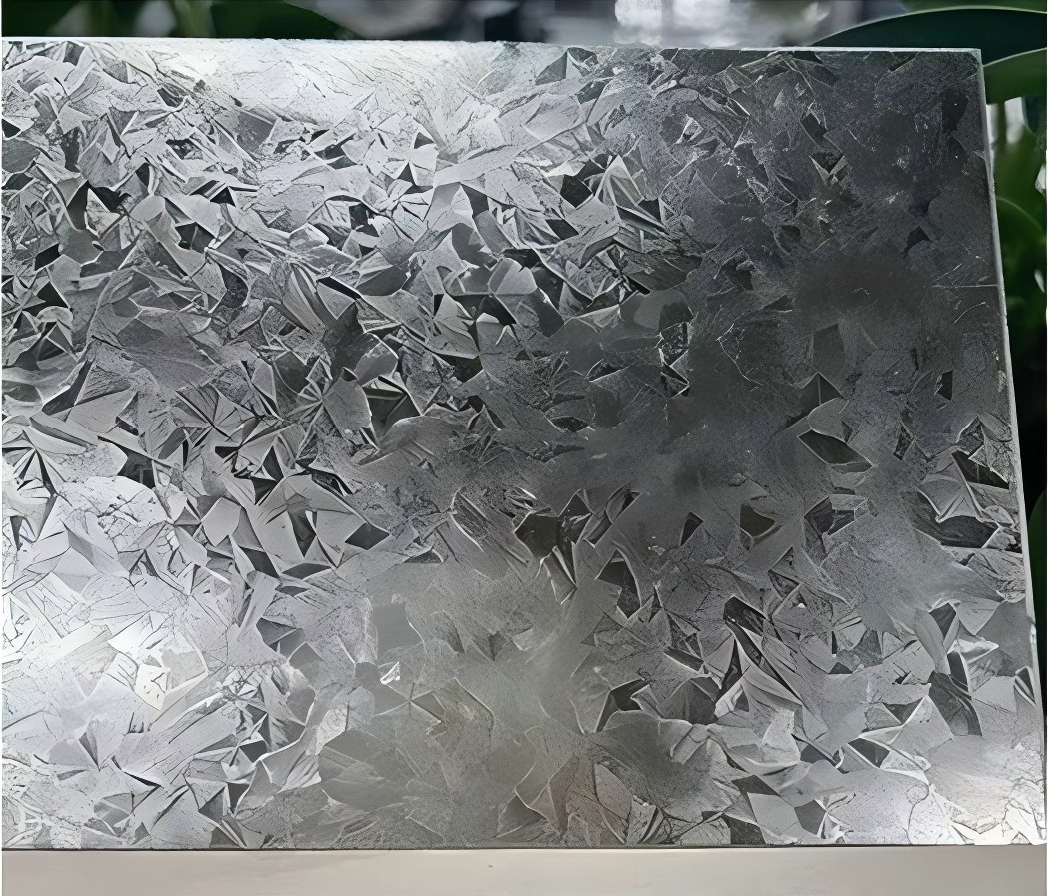

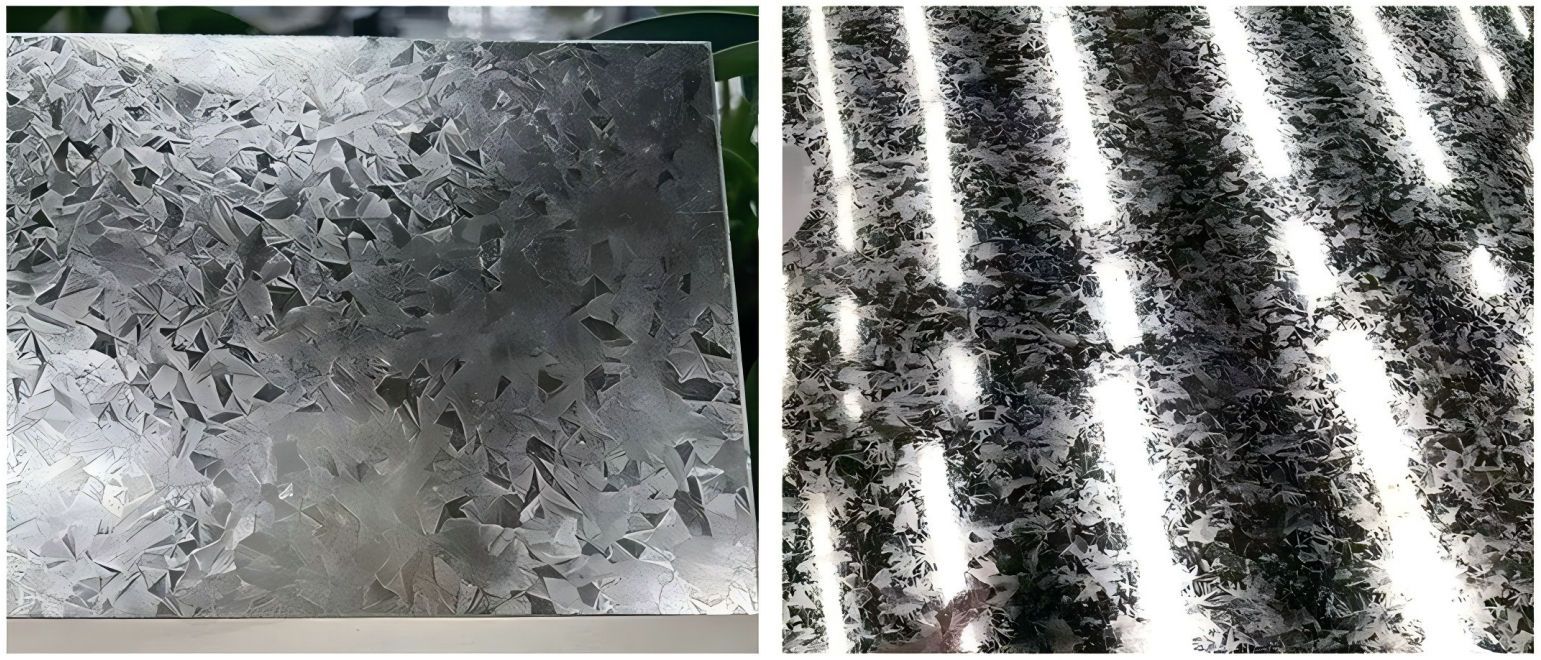

Normal zinc flower N NS Small zinc flower M MS Zinc free flower F FS Zinc ferroalloy ZF ZFS
2.Surface quality code
Ordinary surface FA Advanced surface FC Higher surface FB
3.Surface treatment symbol
Passivation C Unction O Paint sealant L Phosphating P Don't deal with U
